Houston Pipe Supports (HPS) is pleased to announce the release of the 2022 Product Catalog! Download Link: https://www.houstonpipesupports.com/catalog-form/ Standard figures for: Adjustable Base Pedestals, Angle Bases, Adjustable Shim Blocks, Hold Down Clamps, Guide Clamps, Baseplates, Beam Supports, U-Bolts, Sliding Baseplates, Plastic Shim Blocks, FRP Pads, Adjustable Spacers, Half-Round Rods, FRP Saddles, PTFE Pads, Bolted Pipe […]
Houston Pipe Supports
Our product line includes all of the most common types of pipe support systems: Shim Blocks, Hold Down Clamps, Guide Clamps, Adjustable Pedestals, U-Bolts, Half Rounds, FRP Wear Pads, Etc. To allow for immediate interchangeability, the key dimensions and load/temperature limits of our products are compatible with those that are already considered “standard” within the industry.
Load LimitsStandard load limits, temperature limits, and recommended torque values are available in the reference document "HPS Technical Bulletin #0220 - Pipe Support Product Engineering Data". Application-specific load and temperature limit evaluations for both standard (and custom) products are available upon request.
Coating & LiningAll steel parts are supplied hot dipped galvanized. Standard lining materials are either FRP or 100% virgin PTFE (for select configurations). U-bolts are coated with a polyolefin shrink wrap. Half-round rod material is white thermoplastic. Alternate coatings, linings are available upon request.

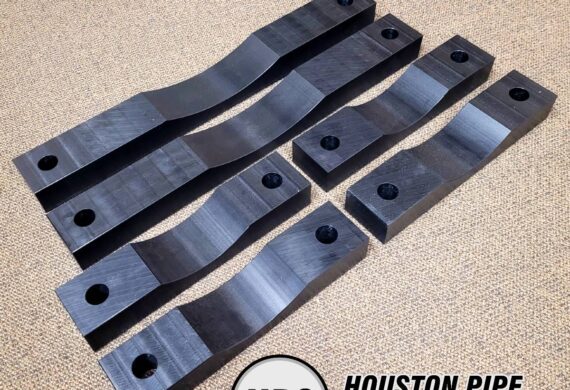

Here we have some customized UHMW-PE (Ultra-High-Molecular-Weight Polyethylene) Saddles that have been custom milled for NPS 20″ and 8″ piping. Holes have been added that would allow the saddle to be utilized with bolting (or u-bolts). The saddles are black in color for UV-Resistance.

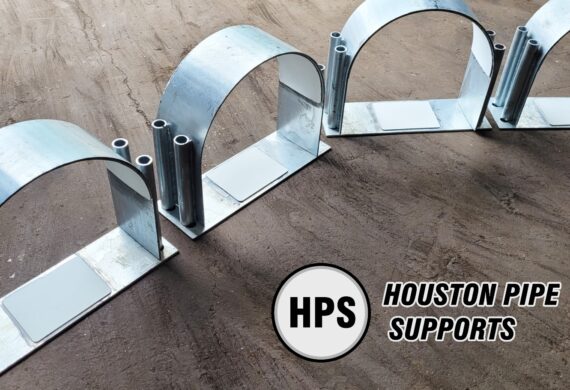

These great looking 20″ Hold-down clamps are finished with a hot dipped galvanized finished and lined with PTFE. These also feature a custom baseplate that matches the bolt holes and avoids the need for attaching the bottom PTFE pad to the support surface in the field. The baseplate can simply be placed on the support […]
